Small Hole
EDM Drilling Machines

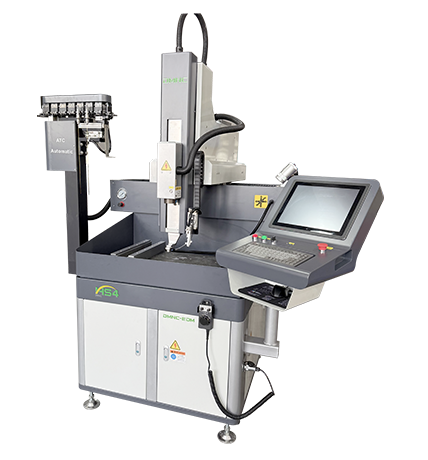

HS4
| Itemhs4 | HS4 |
|---|---|
|
Working table dimension |
500 × 300 mm |
|
Working table travel |
400 × 300 mm |
|
Z axis travel (guide) |
250 mm |
|
W axis travel (electrode) |
400 mm |
|
Electrode diameter range |
Φ0.1 ~ Φ3.0 mm |
|
Max machining current |
30 A |
|
General input power |
6 KVA |
|
Max length of electrode: |
500 mm |
|
Max weight of workpiece |
400 kg |
|
Max height of workpiece |
350 mm |
|
Input voltage |
Three Phase 380V/50Hz |
|
Machine weight |
850 kg |
|
Machine dimension |
1300X1350X2100 mm |
HS6
| Item | HS6 |
|---|---|
|
Working table dimension |
800 × 500 mm |
|
Working table travel |
600 ×400 mm |
|
Z axis travel (guide) |
400 mm |
|
W axis travel (electrode) |
400 mm |
|
Electrode diameter range |
Φ0.1 ~ Φ3.0 mm |
|
Max machining current |
30 A |
|
General input power |
6 KVA |
|
Max length of electrode: |
500 mm |
|
Max weight of workpiece |
500 kg |
|
Max height of workpiece |
420 mm |
|
Input voltage |
Three Phase 380V/50Hz |
|
Machine weight |
1000 kg |
|
Machine dimension |
1450X1650X2200 mm |
KD-DZ430I
| Item | KD-DZ430I |
|---|---|
|
Electrode diameter |
Φ0.3–Φ3.0 mm |
|
Machine head travel |
250 mm |
|
Spindle servo travel |
380 mm |
|
Max. speed of spindle |
1500 mm |
|
The rotation speed of the spindle |
0–200 adjustable (rpm) |
|
Worktable size |
440×320 mm |
|
X×Y travel |
400×300 mm |
|
Max. Distance from the guide to worktable |
≥300 mm |
|
Max. working current |
30 A |
|
Max. input power |
4.0 /KW |
|
Power supply |
3 phase 380V/50Hz |
|
Digital display type |
X, Y, Z |
|
Max. working liquid pressure |
8 (Mpa) |
|
Working liquid supply device |
Electrical plunger pump |
|
Max. worktable load |
380 Kg |
|
The overall dimension of the machine |
1000×1000×2200 (W×L×H) |
|
Machine weight |
650 Kg |
|
X, Y, Z configuration |
X, Y, Z precise ball screw Z axis Taiwan made linear guideway Z axis control; X, Y, W, axes manual |
KD-DZ430C,B,A
| Item | DZ430C | DZ430B | DZ430A |
|---|---|---|---|
|
Electrode diameter |
Φ0.3–Φ3.0 mm |
Φ0.2-Φ3.0 mm |
Φ0.1–Φ3.0 mm |
|
Machine head travel |
250 mm |
250 mm |
250 mm |
|
Spindle servo travel |
380 mm |
380 mm |
380 mm |
|
Max. speed of spindle |
1500 mm |
1500 mm |
1500 mm |
|
The rotation speed of the spindle |
0–200 adjustable (rpm) |
0–200 adjustable (rpm) |
0–200 adjustable (rpm) |
|
Worktable size |
440×320 mm |
440×320 mm |
440×320 mm |
|
X×Y travel |
400×300 mm |
400×300 mm |
400×300 mm |
|
Max. Distance from the guide to worktable |
≥300 mm |
≥300 mm |
≥300 mm |
|
Max. working current |
30 A |
30 A |
30 A |
|
Max. input power |
4.0 /KW |
4.0 /KW |
4.0 /KW |
|
Power supply |
3 phase 380V/50Hz |
3 phase 380V/50Hz |
3 phase 380V/50Hz |
|
Digital display type |
X, Y, Z |
X, Y, Z |
X, Y, Z |
|
Max. working liquid pressure |
8 (Mpa) |
12 (Mpa) |
12/ 8 (Mpa) |
|
Working liquid supply device |
Electrical plunger pump |
Pneumatic pump |
Double pumps (electrical pump + pneumatic pump) |
|
Max. worktable load |
380 Kg |
380 Kg |
380 Kg |
|
The overall dimension of the machine |
1000×1000×2200(W×L×H) |
1000×1000×2200(W×L×H) |
1000×1000×2200(W×L×H) |
|
Machine weight |
700 Kg |
700 Kg |
700 Kg |
|
X, Y, Z configuration |
X, Y, Z precise ball screw Z axis Taiwan made linear guideway Z axis control; X, Y, W, axes manual |
X, Y, Z precise ball screw Z axis Taiwan made linear guideway Z axis control; X, Y, W, axes manual |
X, Y, Z precise ball screw Z axis Taiwan made linear guideway Z axis control; X, Y, W, axes manual |
KD-DC430C,B,A
| Item | DC430C | DC430B | DC430A |
|---|---|---|---|
|
Electrode diameter |
Φ0.3–Φ3.0 mm |
Φ0.2-Φ3.0 mm |
Φ0.1–Φ3.0 mm |
|
Machine head travel |
250 mm |
250 mm |
250 mm |
|
Spindle servo travel |
380 mm |
380 mm |
380 mm |
|
Max. speed of spindle |
1500 mm |
1500 mm |
1500 mm |
|
The rotation speed of the spindle |
0–200 adjustable (rpm) |
0–200 adjustable (rpm) |
0–200 adjustable (rpm) |
|
Worktable size |
440×320 mm |
440×320 mm |
440×320 mm |
|
X×Y travel |
400×300 mm |
400×300 mm |
400×300 mm |
|
Power supply |
3 phase 380V/50Hz |
3 phase 380V/50Hz |
3 phase 380V/50Hz |
|
Digital display type |
X, Y, Z |
X, Y, Z |
X, Y, Z |
|
Max. working liquid pressure |
8 (Mpa) |
12 (Mpa) |
12/ 8 (Mpa) |
|
Working liquid supply device |
Electrical plunger pump |
Pneumatic pump |
Double pumps (electrical pump + pneumatic pump) |
|
Max. worktable load |
300 Kg |
300 Kg |
300 Kg |
|
The overall dimension of the machine |
1000×1000×2200(W×L×H) |
1000×1000×2200(W×L×H) |
1000×1000×2200(W×L×H) |
|
Machine weight |
680 Kg |
680 Kg |
680 Kg |
|
X, Y, Z configuration |
X, Y, Z precise ball screw X, Y, Z axis linear guideway W axis motorized X, Y, Z axis NC control |
X, Y, Z precise ball screw Z axis Taiwan made linear guideway Z axis control; X, Y, W, axes manual |
X, Y, Z precise ball screw Z axis Taiwan made linear guideway Z axis control; X, Y, W, axes manual |
|
Positioning accuracy |
X.Y≤0.01mm/300mm |
X.Y≤0.01mm/300mm |
X.Y≤0.01mm/300mm |
|
Feed ratio of X, Y axis |
1000mm/min |
1000mm/min |
1000mm/min |
