CNC Die-Sinker
EDM Machines
45S+PRO
| Item | 45S+PRO |
|---|---|
|
X Axis travel |
450 mm |
|
Y Axis travel |
300 mm |
|
Z Axis travel |
320 mm |
|
Working table dimension |
700X400 mm |
|
Max weight of workpiece |
400 kg |
|
Max weight of electrode |
25 kg |
|
Distance from spindle end to working table |
605 mm |
|
Dimension of working tank on table |
1200X680X440 mm |
|
Highest oil level |
290 mm |
|
Door open type |
manual lifting door |
|
Capacity of oil tank |
530 L |
|
Weight of machine |
2800 Kg |
|
Dimension of machine |
2084X2230X2306 mm |
|
Max machining current |
50 A |
|
Best surface finish |
<0.2 μm |
|
Min. electrode wear |
<0.1 % |
|
Max machining speed |
>500 mm/min |
|
Control axes |
three-axis simultaneous control |
|
Display |
15″ touch screen (TFT-LCD) |

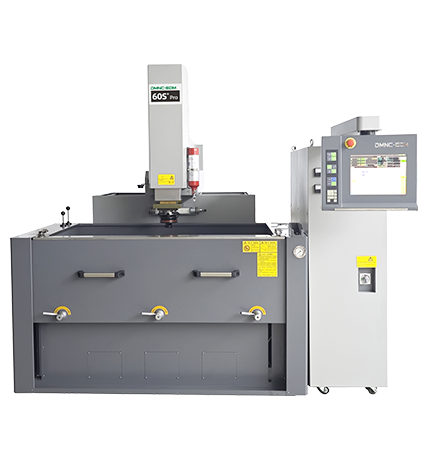

60S+PRO
| Item | 60S+PRO |
|---|---|
|
X Axis travel |
600 mm |
|
Y Axis travel |
400 mm |
|
Z Axis travel |
350 mm |
|
Working table dimension |
900∗600 mm |
|
Max weight of workpiece |
1500 kg |
|
Max weight of electrode |
100 kg |
|
Distance from spindle end to working table |
700 mm |
|
Dimension of working tank on table |
1640∗960∗515 mm |
|
Highest oil level |
380 mm |
|
Door open type |
manual lifting door |
|
Capacity of oil tank |
950 L |
|
Weight of machine |
4100 Kg |
|
Dimension of machine |
2690∗2910∗2420 mm |
|
Max machining current |
50 A |
|
Best surface finish |
<0.2 μm |
|
Min. electrode wear |
<0.1 % |
|
Max machining speed |
≥500 mm3/min |
|
Control axes |
three-axis simultaneous control |
|
Display |
15″ touch screen (TFT-LCD) |
80S+PRO
| Item | 80S+PRO |
|---|---|
|
X Axis travel |
800 mm |
|
Y Axis travel |
500 mm |
|
Z Axis travel |
400 mm |
|
Working table dimension |
1100∗600 mm |
|
Max weight of workpiece |
2500 kg |
|
Max weight of electrode |
100 kg |
|
Distance from spindle end to working table |
900 mm |
|
Dimension of working tank on table |
1800X1100X570mm |
|
Highest oil level |
400 mm |
|
Door open type |
manual lifting door |
|
Capacity of oil tank |
1300 L |
|
Weight of machine |
5000 Kg |
|
Dimension of machine |
2950∗3360∗2630mm |
|
Max machining current |
50 A |
|
Best surface finish |
<0.2 μm |
|
Min. electrode wear |
<0.1 % |
|
Max machining speed |
≥500 mm3/min |
|
Control axes |
three-axis simultaneous control |
|
Display |
15″ touch screen (TFT-LCD) |

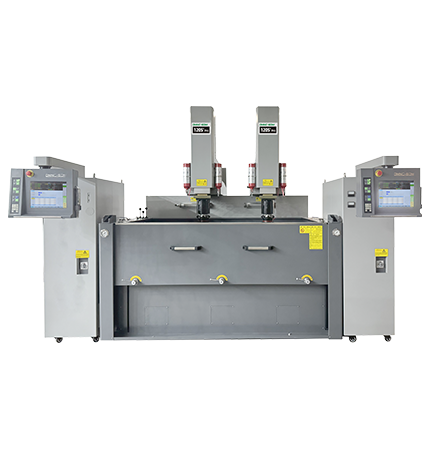

120S+PRO
| Item | 120S+PRO |
|---|---|
|
Working table dimension |
1500×800 |
|
X/Y/Z Axis travel |
Single head 800×600×450 |
|
Dimension of working tank on table |
2100×1250×600 |
|
Max distance between spindle nose to table |
880 |
|
Max weight of electrode |
150 |
|
Max weight of workpiece |
4000 |
|
Positioning accuracy |
X/Y/Z Full travel: 15/15/11 |
|
Single direction repositioning accuracy |
X/Y/Z Full travel: 7/7/5 |
|
Weight of machine |
7000 |
|
Dimension of machine |
3800×3500×2640 |
|
Rated power |
12.5/Single head |
|
Input voltage |
380 |
|
Generator |
CNC controller |
|
Max machining current |
50 |
|
Best surface finish |
Ra≤0.2 |
|
Min. electrode wear |
≤0.1 |
|
Max machining speed |
≥1000 |
|
Interpolation Method |
Straight, arc, helix |
|
Accuracy compensation |
Step error compensation and backlash compensation for each
axis
|
|
Min drive |
1 |
|
Display |
15∘ touch screen |
|
Remote |
Standard jog (multi-grade selections) MFR0−3 |

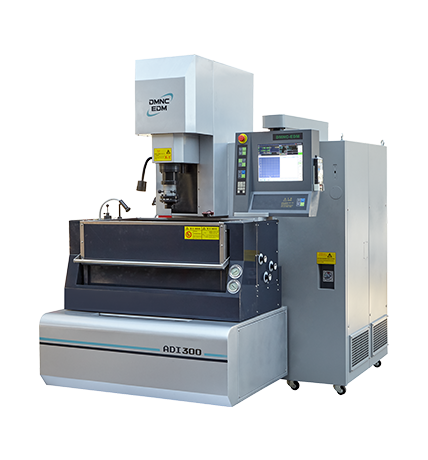

ADI300
| Item | ADI300 |
|---|---|
|
X Axis travel |
300 mm |
|
Y Axis travel |
212 mm |
|
Z Axis travel |
272 mm |
|
Working table dimension |
600X400 mm |
|
Max weight of workpiece |
400 kg |
|
Max weight of electrode |
25 kg |
|
Distance from spindle end to working table |
530 mm |
|
Dimension of working tank on table |
994*604*405 mm |
|
Highest oil level |
250 mm |
|
Door open type |
manual lifting door |
|
Capacity of oil tank |
400 L |
|
Weight of machine |
2300 Kg |
|
Dimension of machine |
1992*2119*2240 mm |
|
Max machining current |
50 A |
|
Best surface finish |
<0.1 μm |
|
Min. electrode wear |
<0.1 % |
|
Max machining speed |
≥500 mm3/min |
|
Control axes |
6-axis simultaneous control |
|
Display |
15″ touch screen (TFT-LCD) |

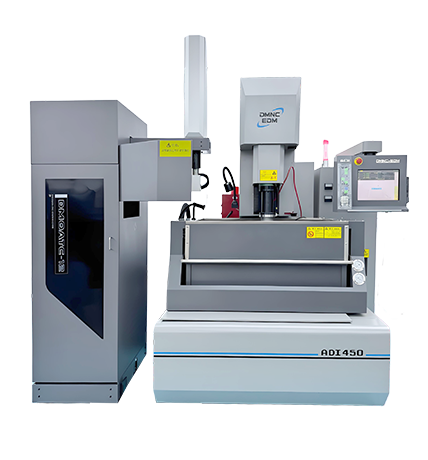

ADI450
| Item | ADI450 |
|---|---|
|
X Axis travel |
452 mm |
|
Y Axis travel |
300 mm |
|
Z Axis travel |
272 mm |
|
Working table dimension |
600X400 mm |
|
Max weight of workpiece |
450 kg |
|
Max weight of electrode |
25 kg |
|
Distance from spindle end to working table |
580 mm |
|
Dimension of working tank on table |
1084*597*435 mm |
|
Highest oil level |
300 mm |
|
Door open type |
manual lifting door |
|
Capacity of oil tank |
600 L |
|
Weight of machine |
3100 Kg |
|
Dimension of machine |
2024*2590*2355 mm |
|
Max machining current |
50 A |
|
Best surface finish |
<0.1 μm |
|
Min. electrode wear |
<0.1 % |
|
Max machining speed |
≥500 mm3/min |
|
Control axes |
6-axis simultaneous control |
|
Display |
15″ touch screen (TFT-LCD) |

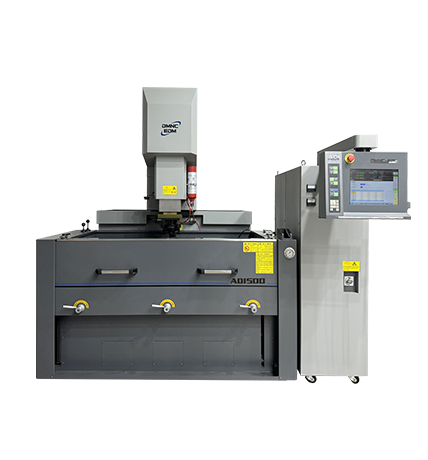

ADI500
| Item | ADI500 |
|---|---|
|
X Axis travel |
500 mm |
|
Y Axis travel |
400 mm |
|
Z Axis travel |
300 mm |
|
Working table dimension |
800X500 mm |
|
Max weight of workpiece |
800 kg |
|
Max weight of electrode |
80 kg |
|
Distance from spindle end to working table |
700 mm |
|
Dimension of working tank on table |
1370*860*515 mm |
|
Highest oil level |
370 mm |
|
Door open type |
manual lifting door |
|
Capacity of oil tank |
700 L |
|
Weight of machine |
3800 Kg |
|
Dimension of machine |
2418*2580*2560 mm |
|
Max machining current |
50 A |
|
Best surface finish |
≤0.2 μm |
|
Min. electrode wear |
≤0.1 % |
|
Max machining speed |
≥500 mm3/min |
|
Control axes |
6-axis simultaneous control |
|
Display |
15″ touch screen (TFT-LCD) |
ADI600
| Item | ADI600 |
|---|---|
|
X Axis travel |
600 mm |
|
Y Axis travel |
500 mm |
|
Z Axis travel |
350 mm |
|
Working table dimension |
900X600 mm |
|
Max weight of workpiece |
1200 kg |
|
Max weight of electrode |
100 kg |
|
Distance from spindle end to working table |
700 mm |
|
Dimension of working tank on table |
1640*960*515 mm |
|
Highest oil level |
380 mm |
|
Door open type |
manual lifting door |
|
Capacity of oil tank |
950 L |
|
Weight of machine |
4100 Kg |
|
Dimension of machine |
2700*2900*2500 mm |
|
Max machining current |
50 A |
|
Best surface finish |
≤0.2 μm |
|
Min. electrode wear |
≤0.1 % |
|
Max machining speed |
≥500 mm3/min |
|
Control axes |
6-axis simultaneous control |
|
Display |
15″ touch screen (TFT-LCD) |
